2.5-3.5t 4WD Rough Terrain
4WD Diesel Forklift
The Hangcha 2.5–3.5t 4WD Rough Terrain Forklift is a tough, compact machine built for Australia's most challenging sites. With 270mm ground clearance, 2WD/4WD switchable transmission, full-floating hydraulic drivetrain, and a low centre of gravity — it conquers construction sites, timber yards, agricultural properties, and any terrain that stops conventional forklifts.
2,500 – 3,500 kg
Load Capacity
2,700 – 6,500 mm
Lift Height
4WD Diesel
Drive Type
12 Month Warranty
Comprehensive warranty with genuine parts and nationwide support
Parts Support
Genuine parts and support options confirmed for your location

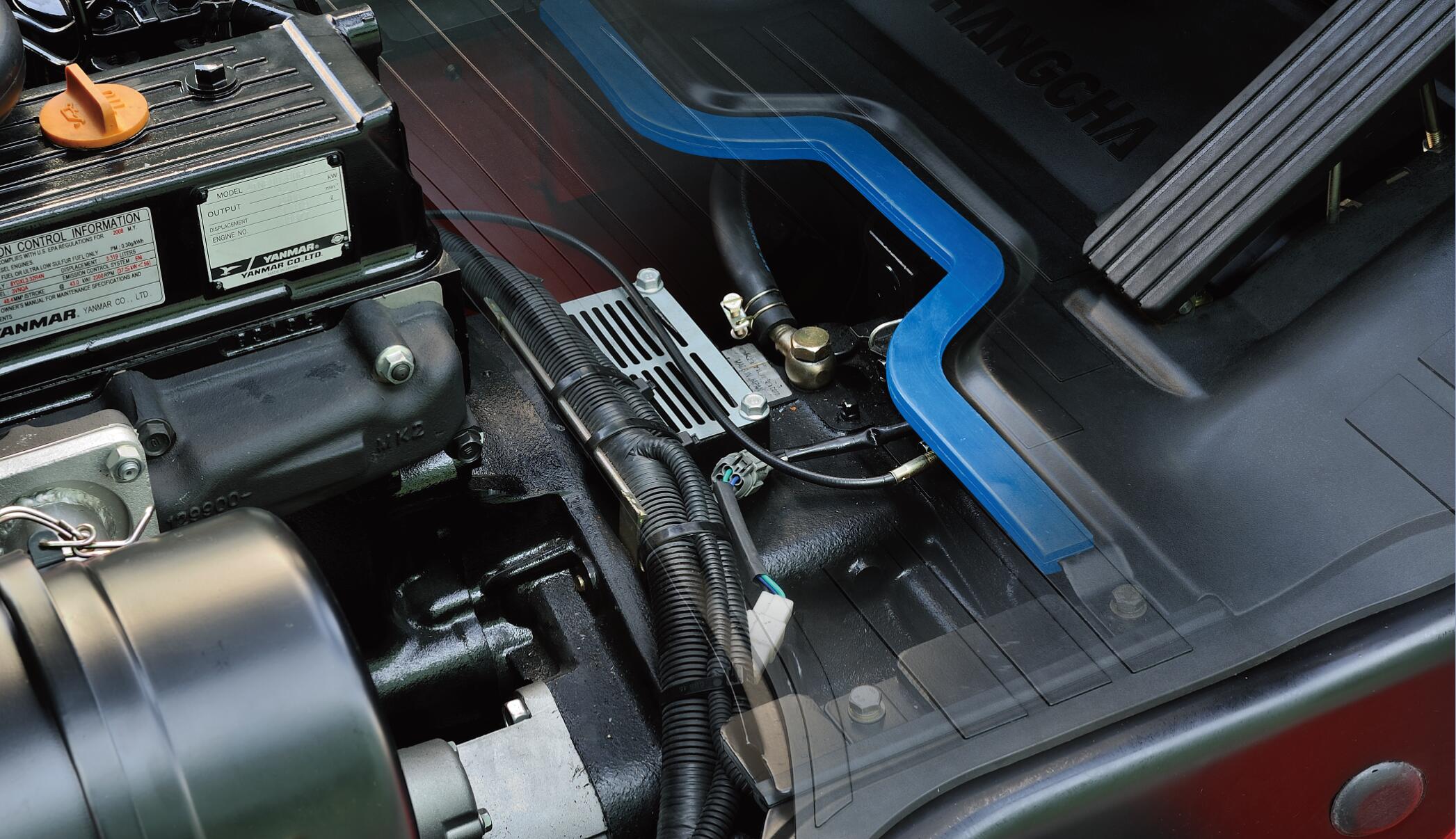

Full-Floating 4WD Drivetrain
Full-floating hydraulic transmission gearbox with 2WD/4WD switch function provides higher running speed on sealed surfaces and superior gradeability on rough, uneven terrain.
270mm High Ground Clearance
Outstanding 270mm distance to ground (3.0t model) offers greater manoeuvrability and keeps the truck moving through the roughest applications, with distributed weight for excellent stability.

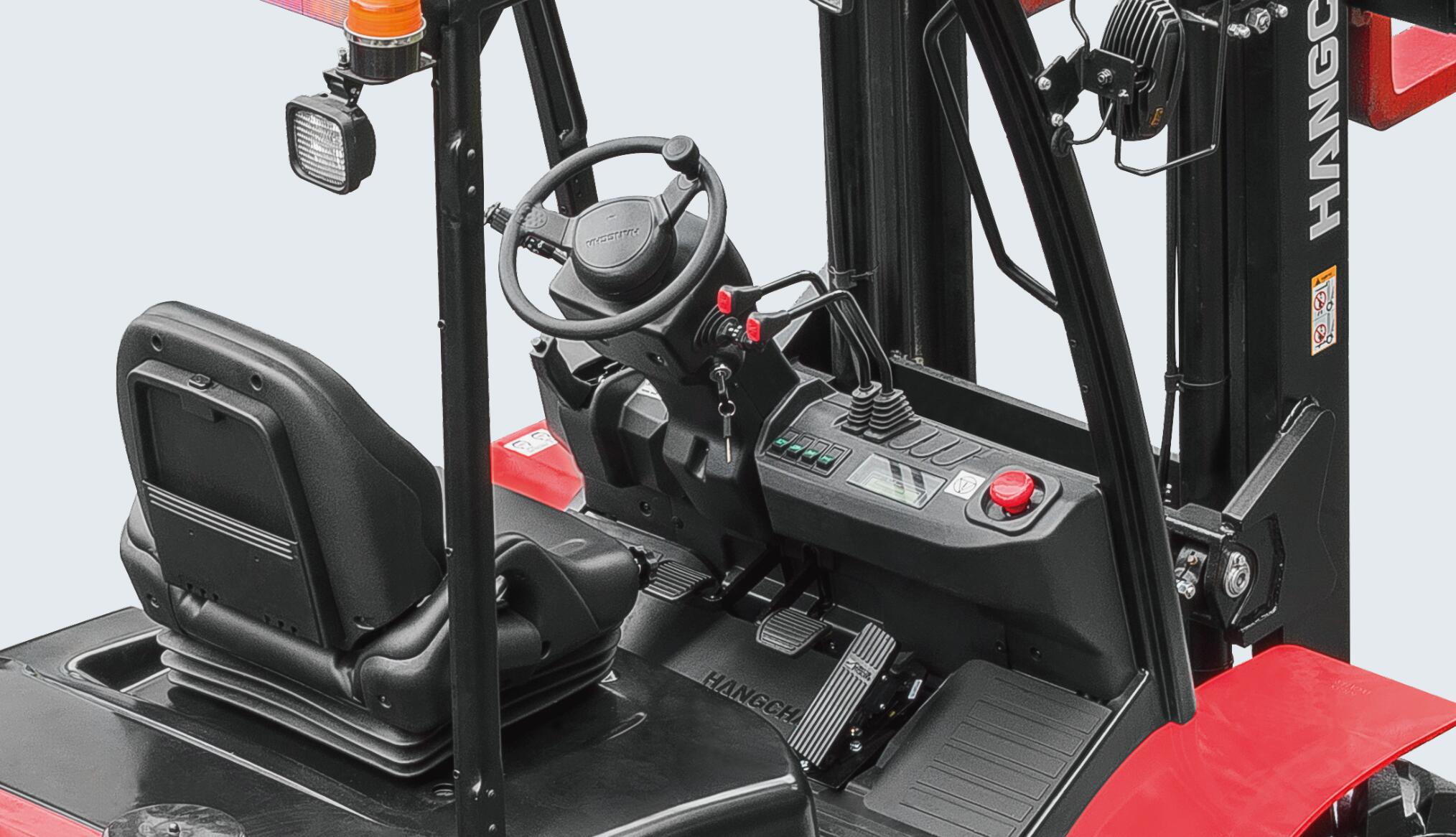

Operator Comfort & Control
Compound engine damper, full-floating seat and cabin, improved vibration levels, and expanded foot space with non-slip step — engineered for all-day comfort on rough terrain.
Heavy-Duty Cooling System
Dual air filter and high-capacity combined radiator with serpentine wave design and optimised heat dissipation channel ensure engine reliability even in the most demanding heavy-duty applications.
FEATURES
- Full-floating hydraulic transmission gearbox for seamless power delivery
- 2WD and 4WD switch function for optimal efficiency on any surface
- Higher running speed on sealed surfaces with 2WD economy mode
- Stronger gradeability in 4WD mode for slopes and soft ground
- Compound engine damper minimises drivetrain-induced vibrations
- 270mm ground clearance (3.0t model) for navigating rough, uneven terrain
- Distributed weight design maintains a very low centre of gravity
- Excellent stability even with high ground clearance
- Compact turning radius for confined job site manoeuvrability
- High-clearance axles engineered for Australian off-road conditions
- Full-floating seat and cabin with improved vibration dampening
- Expanded foot space significantly reduces operator fatigue
- Non-slip step ensures safe and easy entry and exit
- Newly designed steering wheel and upgraded brake system
- User-friendly control levers enhance overall handling efficiency

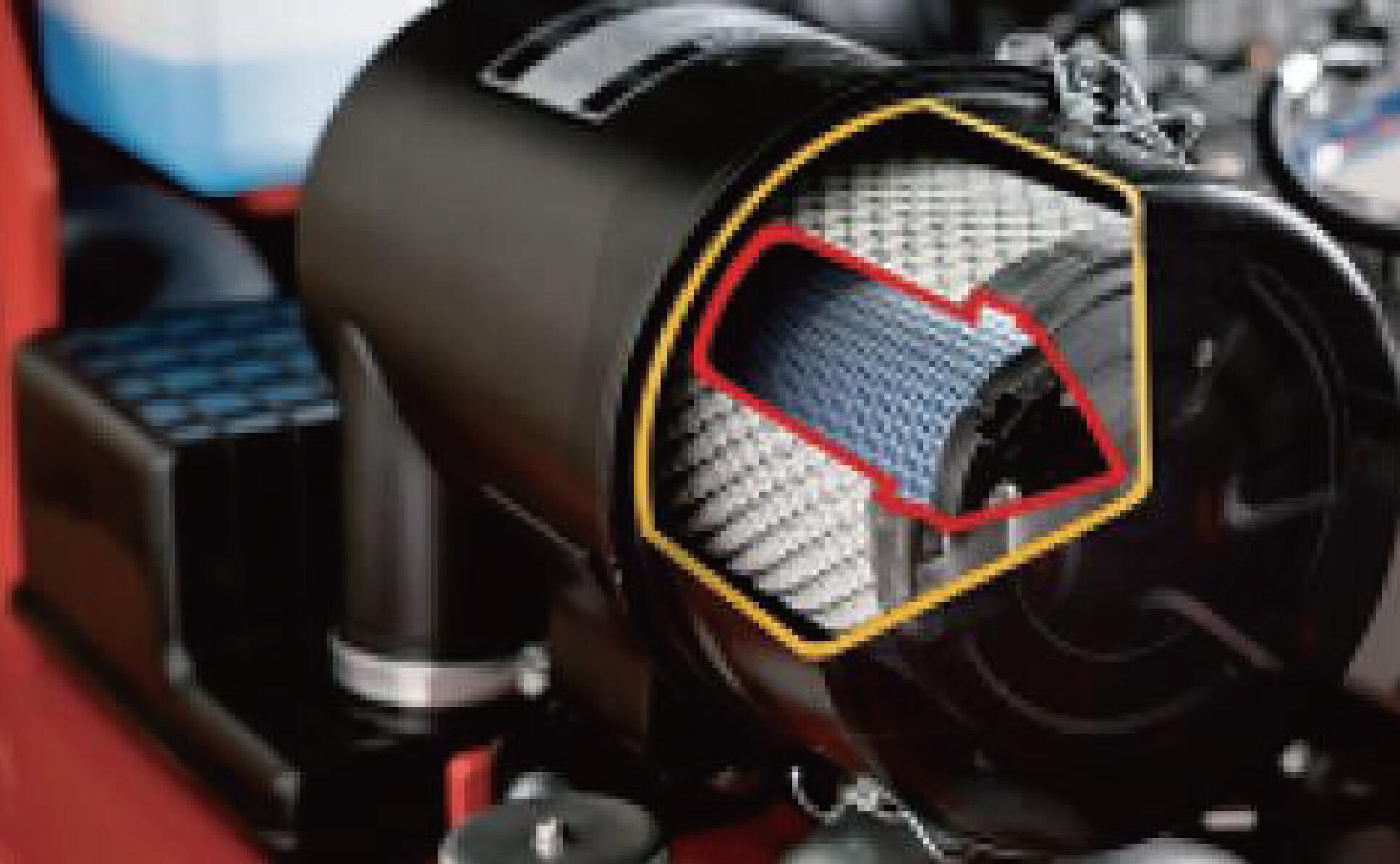

- Dual air filter system for cleaner engine intake and longer service life
- High-capacity combined radiator with serpentine wave design
- Optimised heat dissipation channel for maximum cooling efficiency
- Engine reliability maintained even during continuous heavy-duty operation
- Enhanced protection against dust and debris in harsh environments

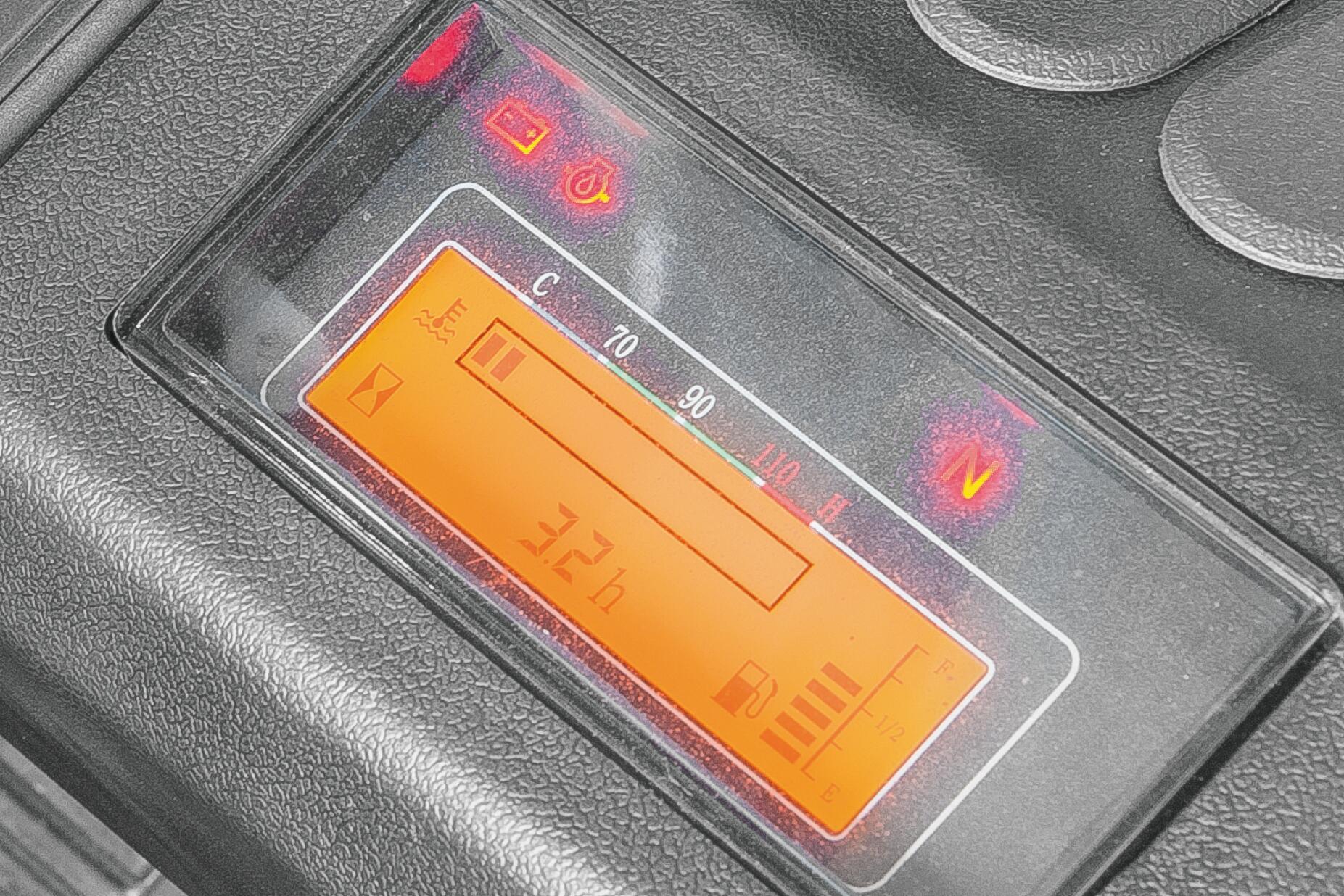

- Newly-developed LCD instrument with comprehensive truck status display
- Fault code monitoring for intuitive maintenance and diagnostics
- New-generation integrated electric box with improved waterproof performance
- Rubber damper between overhead guard and frame reduces cabin vibration
- Flexible connection between frame and drivetrain for enhanced stability
SPECIFICATIONS
Product TypeRough Terrain Trucks, 4WD Diesel Forklift
Load Capacity2,500 – 3,500 kg
Lift Height2,700 – 6,500 mm
Drive Type4WD Diesel
EngineDiesel (Common Rail Turbo)
TransmissionFull-Floating Hydraulic, 2WD/4WD
Service Weight4,200 – 5,800 kg
Ground Clearance270 mm (3.0t)
Turning Radius2,700 – 3,100 mm
Gradeability (Loaded)25%
Travel Speed (Loaded)20 – 25 km/h
Overall Length (to fork)3,700 – 4,300 mm
